AS

Up to 57 Cartons/min.

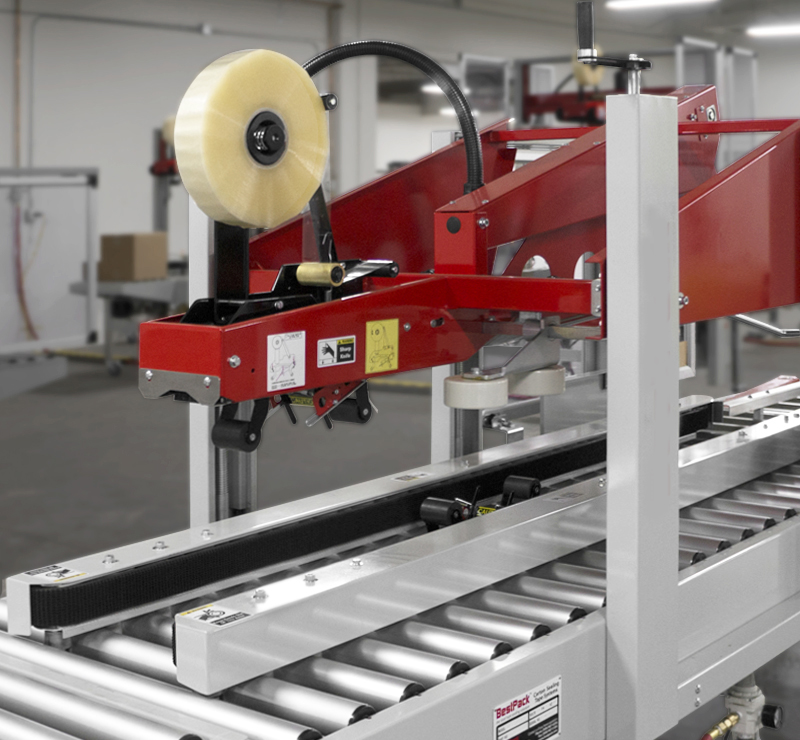

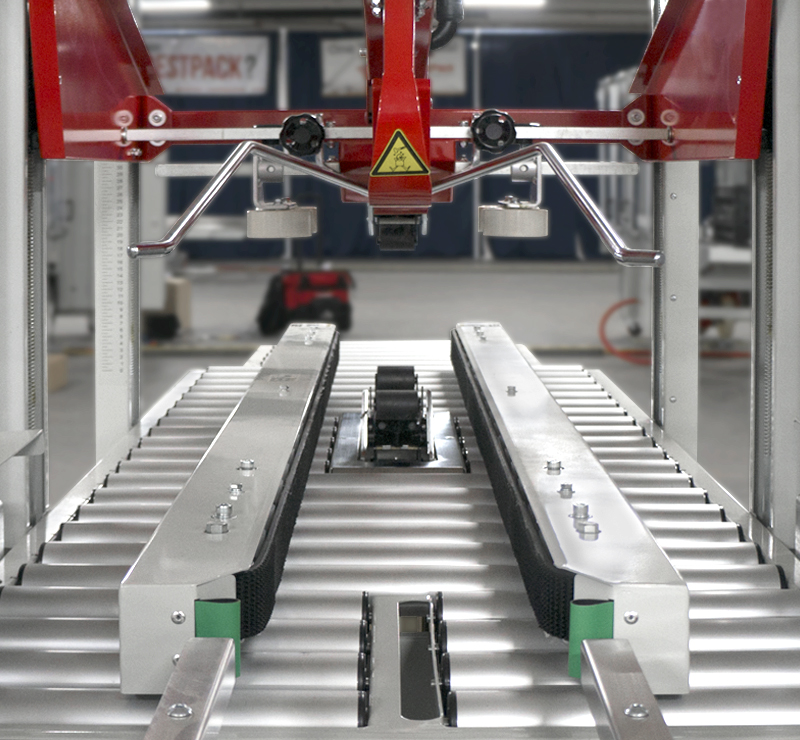

The Anchortape AS Series is a fully automatic carton sealer designed to meet the needs of uniform in-line carton closure applications. Designed with a solid four-column support structure and using dual motor side belt technology, the AS closes all four top flaps and seals the top & bottom of the carton, using 45-60 PSI and 4-5 SCFM of air.

NOW EQUIPPED WITH OUR DATA ADVANTAGE SYSTEM!

Our AS line incorporates our exclusive 2″ or 3″ pop-out pressure-sensitive “High Speed” tape heads with Anchortape’s patented tab adjustment. All Anchortape units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.

Description

FULLY AUTOMATIC

UNIFORM CARTONS

TOP & BOTTOM SEAL

POWER REQUIREMENTS: 110 VOLTS 60 HZ

AIR REQUIREMENTS: 45-60 PSI, 4-5 SCFM

SHIPPING WEIGHT: 650-760 LBS

SPECIFICATIONS
  • SPEED: Up to 57 Cartons/min.
  • POWER REQUIREMENTS: 110 Volts 60 Hz
  • AIR REQUIREMENTS: 45-60 PSI, 4-5 SCFM
  • SHIPPING WEIGHT: 650-760 lbs.
  • MACHINE DIMENSIONS: (77.7″) x (33.8″) x (69.0″)
  • CARTON RANGE: (8.0″ – 27.5″) x (6.0″ – 20.0″) x (5.5″ – 20.0″)
  • TRIP CURRENT (A): 20
  • FLA: 2.5
  • CONVEYOR HEIGHT ADJUSTMENT: (22.5″ – 30.0″)
  • PHASE: 1
  • SCCR (KA): 10
  • MAX CURRENT (A): 5
  • POWER (W): 275
  • SPECIFICATIONS BASED ON LINE: Specifications based on AS22-2
